1200 POLARIZATION OPTIC
1200 POLARIZATION OPTICDownload .pdf
This polarization optic is used for in-process control and product development of balloon catheters.
The balloon will be manually supported in the designated opening and can be inspected from all sides as required.
The polarization filter is creating reflections that will help to evaluate the consistency of the wall thickness and cone geometry. Deficient products can easily be identified and rejected.
| Technical Specifications: | |
|---|---|
| LED projector for uniform light | |
| polarization filter | |
| optical aperture height 15 mm | |
| optical aperture width 80 or 145 mm | |
| adjustable stand | |
| anodized device base | |
| IEC connector and main switch | |
| dimensions (L x W x H): 300 x 160 x 350 mm | |
| weight: 2.5 kg | |
| power: 100 – 240 VAC , 50/60 Hz, 5 W | |
Details:

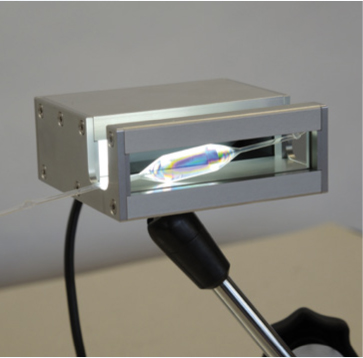

- Polarization Optic

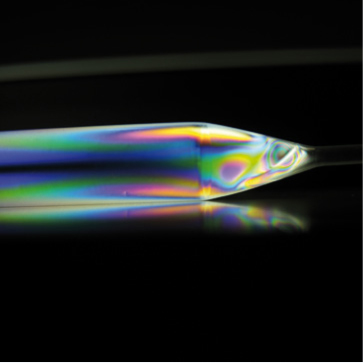

- Polarization Effect
- Standard Versions 80 or 145 mm
