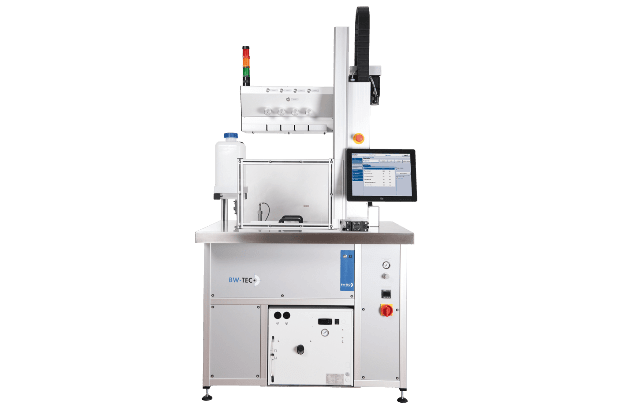

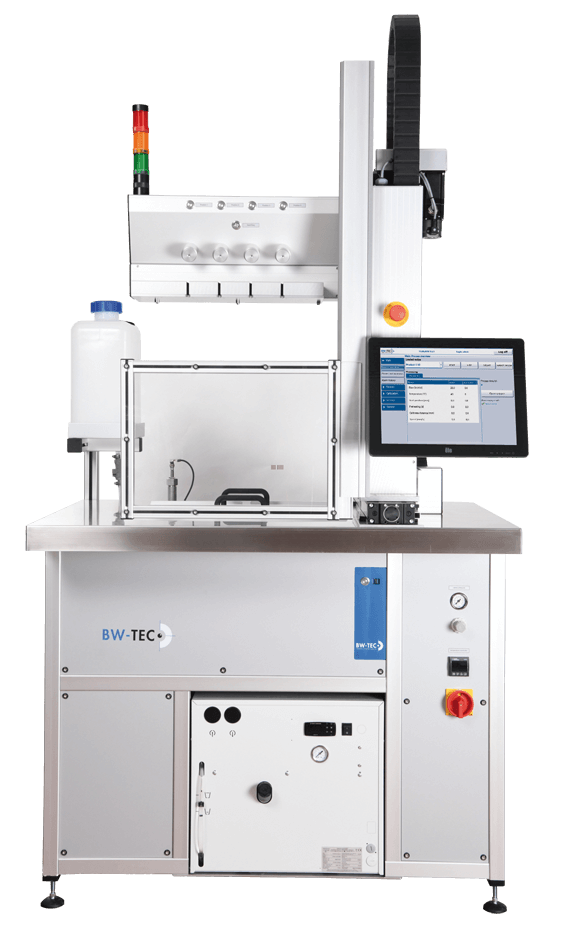

81 Balloon Moulding Machine

BALLOON MOULDING MACHINE 81Download .pdf

The Balloon Moulding Machine, used for the production of plastic balloons for angioplasty, is equipped with four (six) product fixtures. The tube, placed in a 3-part mould is held together by a clamp equipped with a weight in order to achieve the necessary pulling force during the moulding process. The process pressure ranges up to 50 bar, (5 MPa) and the required temperature is transferred by using heated DI water from 96 °C. Moreover, the process parameters for specific products can be stored in separate menus.

Technical Specifications:
Performance: up to 500 balloons per shift

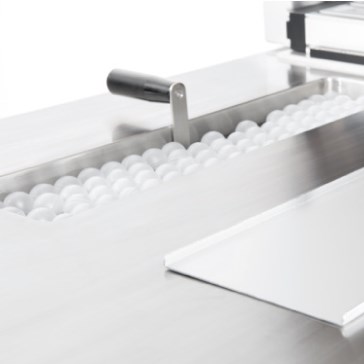

Working platform with implemented containers in stainless steel
Heated water container equipped with electrical heating elements (2 KW), level controller and thermostat
PID-controlled process temperatures: 96°C for moulding and 10°C for cooling down of the moulds
Chilling container equipped with cooling compressor
X and Z axis precision linear slide driven by stepper motor
Pneumatically actuated fasteners are used for holding the product
Process pressure up to 50 bar (5 MPa) controlled by an electronic pressure controller
The actual pressure is shown on the PLC screen
Low pressure system 6–10 bar (0.6–1.0 MPa) for product fixation
PLC controller with user interface for programming of all parameters
Memory modules for 200 menus
Dimensions LxWxH1000 x 800 x 1800 mm
Weight180 kg
Power3 x 400 VAC
4000 W
others upon request

Details:

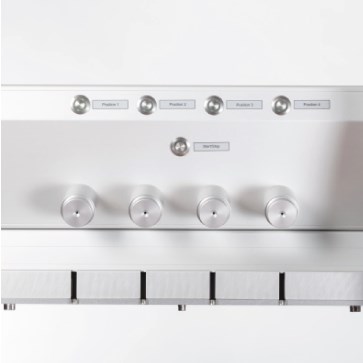

Product connection
Product clamp
User Interface
